Commercial Wireless Access Point Installation Guide for Businesses

Weak Wi-Fi slows work down in ways that are easy to overlook. A payment terminal takes longer to connect. A scanner drops off the network in the stockroom. Guests complain that the lobby Wi-Fi is unreliable. Video calls freeze in one corner of the building while another area has full bars.

For many businesses, the problem is not the internet connection. It is the way wireless access points are planned, installed, and configured.

A commercial wireless network needs more than a consumer router placed on a shelf. It needs the right access points, installed in the right locations, connected to the right cabling, and configured for security, speed, and coverage. This guide walks through the full process of commercial wireless access point installation, from site survey to troubleshooting, with practical guidance for business owners and IT managers.

Business Wi-Fi works best when access points are planned around the real space.

Why wireless access points matter for businesses

A wireless access point, often called an AP, extends a wired network so phones, laptops, tablets, scanners, cameras, point-of-sale devices, and guest devices can connect over Wi-Fi.

In a small home, one router may be enough. In a business setting, that approach breaks down quickly. Walls, equipment, shelving, floor layout, neighboring networks, and user density all affect performance.

A well-designed access point system can support:

• Consistent coverage




Staff can move through the building without losing connection.

• Better device capacity




Multiple APs can share the load instead of forcing every device onto one router.

• Stronger security




Business-grade systems support guest networks, VLANs, WPA3, and authentication tools.

• Cleaner network control




IT teams can monitor usage, manage firmware, and apply policies from one place.

• Room to grow




A planned system can support new devices, expanded areas, and higher bandwidth needs.

The goal is not just “full bars.” The real goal is stable, secure, usable Wi-Fi where people and devices actually need it.

Start with a site survey before buying equipment

A site survey is the foundation of a successful installation. It helps identify coverage needs, interference sources, cable paths, and the number of access points required.

Skipping this step often leads to bad placement, dead zones, overloaded APs, and extra labor later.

Map the space and users

Begin with a current floor plan if one is available. If not, create a simple map that shows walls, doors, ceilings, high-traffic areas, and network rooms.

Mark areas such as:

• Reception areas

• Conference and training rooms

• Warehouses and production floors

• Retail aisles

• Outdoor patios or loading areas

• Break rooms

• Guest waiting areas

• Areas with scanners, tablets, or mobile terminals




Then estimate how many devices will connect in each area. A conference room with 25 people may need more wireless capacity than a large storage room with two scanners.

Identify building materials and interference

Wi-Fi signals weaken as they pass through physical barriers. Some materials create bigger problems than others.

Common obstacles include:

• Concrete and brick walls

• Metal shelves and racks

• Glass with metallic coatings

• Elevator shafts

• Machinery

• Refrigeration units

• Large mirrors

• Thick doors

• High ceilings




Interference also matters. Nearby Wi-Fi networks, Bluetooth devices, cordless phones, microwave ovens, wireless cameras, and older equipment can all affect performance.

Test signal conditions

A survey can be predictive, physical, or both.

A predictive survey uses software and floor plans to estimate coverage. A physical survey measures signal strength on-site using test equipment. For complex buildings, the best approach often combines both.

Key measurements include:

• Signal strength

• Noise level

• Signal-to-noise ratio

• Channel use

• Roaming behavior

• Throughput in important areas




The site survey should produce a placement plan, coverage expectations, cabling needs, and equipment recommendations.

A site survey turns Wi-Fi guesswork into a clear installation plan.

Select the right access points and network equipment

Commercial access points vary widely. The right choice depends on building size, user count, device types, security needs, and management preferences.

Choose access points based on the environment

Look for APs designed for the space where they will be installed.

Indoor ceiling APs work well in many offices, clinics, schools, and retail spaces. Wall-mounted APs may fit hotels, dorm-style layouts, or locations with limited ceiling access. Outdoor APs are built for patios, yards, parking areas, and exposed loading zones. Warehouses may need directional antennas or APs designed for high ceilings.

Key features to review include:

• Wi-Fi 6, Wi-Fi 6E, or Wi-Fi 7 support

• Device capacity

• Antenna pattern

• Power over Ethernet support

• Cloud or local management

• Guest network support

• VLAN support

• WPA3 security

• RADIUS or 802.1X authentication support

• Environmental rating for outdoor or harsh locations




Avoid choosing APs based only on advertised maximum speed. Real-world performance depends on placement, client devices, interference, cabling, and configuration.

Plan switching, cabling, and power

Most business access points use Power over Ethernet, or PoE. This lets one Ethernet cable carry both data and power to the AP.

Check that switches provide enough PoE budget for all planned access points. Some newer APs require PoE+ or PoE++ to run all features.

Cabling matters as well. Many installations use Cat6 or Cat6A cable, depending on distance, speed needs, and building standards. Cable runs should follow code, use proper pathways, and terminate cleanly in a network closet or rack.

A strong Wi-Fi installation also needs:

• Proper patch panels

• Labeled cables

• UPS battery backup for key network gear

• Firewall or router capacity

• Network controller or cloud management

• Documentation for future support




Follow a clear installation process

A structured process reduces downtime and prevents rework. The steps below apply to most business installations, though the details may change based on the building and network design.

Step	What happens	Why it matters
1	Review requirements	Defines coverage, capacity, and security needs
2	Complete the site survey	Confirms AP locations and interference risks
3	Choose equipment	Matches hardware to the building and user load
4	Plan cabling	Ensures APs have data, power, and clean routes
5	Install mounts and cable	Creates a safe, reliable physical setup
6	Configure the network	Sets SSIDs, security, VLANs, and rules
7	Test coverage	Confirms the system works in real conditions
8	Document the installation	Makes support and expansion easier

Install cabling and mounts

Access points should be mounted securely to ceilings, walls, beams, or approved brackets. Never leave APs hanging by cable or placed loosely above ceiling tiles.

Cable runs should avoid electrical interference and sharp bends. They should also maintain proper distance from high-voltage wiring according to code and best practice.

Every cable should be labeled at both ends. This small step saves time during troubleshooting, upgrades, and future expansion.

Configure the wireless network

Configuration choices have a major effect on performance and security.

Typical setup tasks include:

• Creating staff and guest SSIDs

• Assigning VLANs to separate traffic

• Enabling WPA2 or WPA3 security

• Setting strong admin credentials

• Disabling unused default settings

• Updating firmware

• Assigning AP names based on location

• Setting transmit power and channels

• Enabling fast roaming where supported

• Applying bandwidth rules for guest traffic




For most businesses, staff and guest Wi-Fi should be separate. Guest devices should not have access to internal servers, printers, payment systems, or business applications unless there is a specific reason.

Clean cabling and PoE switches support reliable access point performance.

Place access points for coverage and capacity

Access point placement is one of the biggest factors in Wi-Fi performance. More APs do not always mean better Wi-Fi. Poorly placed APs can overlap too much, interfere with each other, or create roaming issues.

Avoid common placement mistakes

For best results, avoid placing APs:

• Inside metal cabinets

• Above crowded ceiling spaces full of ductwork

• Behind thick walls

• Near large electrical equipment

• Next to microwave ovens or industrial machines

• Too close to each other

• At one end of a room when users are spread throughout it

• In hallways as the only coverage source for nearby rooms




Hallway placement can work in some layouts, but it often sends signal where it is not needed while leaving rooms with weak coverage. Place APs based on users and devices, not just convenient ceiling access.

Balance coverage with capacity

Coverage means the signal reaches the area. Capacity means the network can handle the number of devices in that area.

A large open room may have strong signal from one AP, but if many people gather there, one AP may not be enough. A training room, event space, cafeteria, or waiting area may need several access points with adjusted power levels and channel planning.

Good design balances three goals:

• Enough signal strength

• Enough AP capacity

• Minimal interference between APs




Use proper channel and power settings

Business Wi-Fi usually uses 2.4 GHz, 5 GHz, and in newer systems, 6 GHz bands.

The 2.4 GHz band travels farther but has fewer usable channels and more interference. The 5 GHz band offers more channels and often better performance at shorter ranges. The 6 GHz band can provide cleaner spectrum for compatible devices, but it has shorter range and requires newer hardware.

Automatic channel selection can work well, but it should still be checked. In dense environments, manual tuning may produce better results.

Transmit power also matters. Turning every AP to maximum power can cause sticky client problems, where devices stay connected to a distant AP instead of roaming to a closer one. Balanced power settings help devices move smoothly through the building.

Test the network before calling the job done

A commercial Wi-Fi installation is not complete when the last AP powers on. Testing confirms whether the network meets real business needs.

Useful tests include:

• Walking the site with a Wi-Fi survey tool

• Checking signal in corners, rooms, and work areas

• Testing roaming between APs

• Running speed tests in key locations

• Verifying guest network isolation

• Confirming access to printers, apps, and cloud tools

• Testing voice or video calls if staff rely on them

• Checking device behavior during peak use




Testing should include the actual devices people use. A high-end laptop may perform well in a location where an older handheld scanner struggles.

Document the final AP locations, cable labels, switch ports, IP addresses, SSIDs, VLANs, passwords storage method, and firmware versions. Keep this documentation secure and current.

Common challenges and troubleshooting tips

Even a planned network can run into problems. The key is to troubleshoot in a logical order instead of guessing.

Weak signal in certain areas

Start by checking AP placement, obstacles, and transmit power. A wall, metal rack, or mechanical room may be blocking the signal.

Possible fixes include:

• Moving the AP

• Adding an AP in the weak area

• Adjusting antenna direction

• Reducing physical obstructions where possible

• Using a different AP model for high ceilings or outdoor spaces




Slow speeds despite strong signal

Strong signal does not guarantee fast Wi-Fi. The AP may be overloaded, the internet connection may be saturated, or interference may be high.

Check:

• Number of connected devices

• Channel congestion

• Switch port speed

• Cable quality

• AP uplink status

• Band steering settings

• Firmware status

• Traffic from backups, cameras, or large downloads




Devices keep disconnecting

Frequent drops can come from roaming issues, power problems, DHCP conflicts, interference, or outdated drivers.

Review:

• PoE power levels

• DHCP scope size

• Firmware and driver versions

• Authentication logs

• Signal-to-noise ratio

• Roaming settings

• AP reboot history




Guest Wi-Fi works but staff Wi-Fi does not

This often points to VLAN, firewall, authentication, or DHCP settings. Confirm that each SSID maps to the correct VLAN and that firewall rules allow the required traffic.

Also check whether RADIUS or directory-based authentication is working. If staff login fails, the Wi-Fi may be fine while the authentication path is broken.

One area is always crowded

High-density areas need special planning. Reduce cell size, add APs where needed, and use 5 GHz or 6 GHz where device support allows. Limit low data rates if appropriate, since slow clients can consume more airtime.

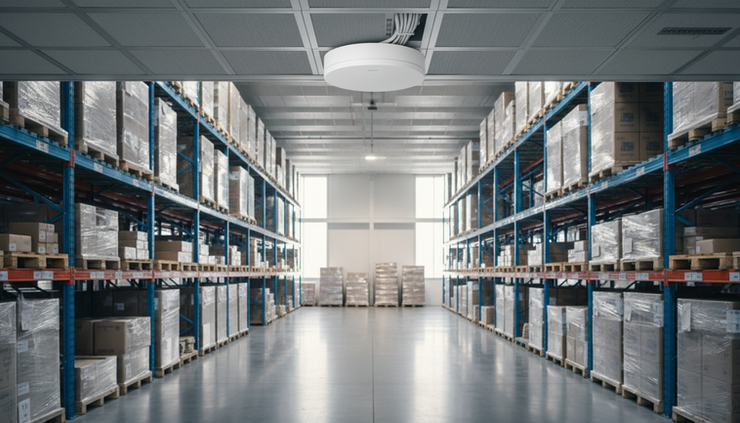

High ceilings and open areas need careful access point placement.

Professional installation versus DIY

Some small businesses can set up a basic Wi-Fi network on their own. A single small room with a few users may not need a complex design. Larger spaces, multi-floor buildings, guest access, security requirements, and business-critical devices change the equation.

DIY installation	Professional installation
Lower upfront labor cost	Better planning and fewer surprises
Works for simple spaces	Suits multi-room and multi-AP environments
Limited testing tools	Uses survey tools and structured testing
Higher risk of poor placement	APs are placed based on coverage and capacity
Documentation may be missed	Cabling, ports, settings, and locations are recorded
Security may rely on defaults	VLANs, guest access, and authentication are configured properly

Professional installers bring experience with cabling, PoE budgets, mounting, local code considerations, channel planning, and post-install testing. They can also spot problems that are easy to miss, such as overloaded switches, bad cable runs, weak closet power protection, or APs mounted in places that look convenient but perform poorly.

The biggest benefit is reliability. Wi-Fi supports daily operations, customer experience, payments, communication, inventory, access control, and cloud applications. When it fails, the cost is rarely limited to a few minutes of inconvenience.

A practical checklist before installation day

Use this checklist to prepare for a smoother project.

• Confirm the areas that need Wi-Fi coverage.

• Count staff, guest, and device connections by area.

• Identify business-critical wireless devices.

• Gather floor plans or create a basic layout.

• Locate network closets, racks, switches, and cable pathways.

• Check whether current switches support enough PoE.

• Decide whether guest Wi-Fi needs a captive portal.

• Plan staff and guest network separation.

• Schedule installation during a low-impact time.

• Decide who will own passwords, documentation, and support access.

• Plan for future growth, not just current device counts.




A good installation should leave the business with a network that is secure, documented, manageable, and ready for normal growth.

Build Wi-Fi around the way the business actually works

Commercial Wi-Fi should be designed around people, devices, building conditions, and security needs. The best installations begin with a site survey, use the right access points, follow clean cabling practices, and end with real testing.

For business owners and IT managers, the main takeaway is simple. Do not treat wireless access points as hardware you can place anywhere and fix later with settings. Placement, cabling, configuration, and testing all work together.

When those pieces are handled well, Wi-Fi fades into the background, which is exactly where it belongs. Staff stay connected, guests get reliable access, and the network supports the business instead of slowing it down.
